Subfloor Panels: Choosing Sheathing for Laminate and Vinyl
A subfloor under laminate or vinyl is judged by what it refuses to do: it must not move, flex or telegraph a joint through to a finished floor. The published option is straightforward — pine veneers, construction grade, cross-laminated so the panel resists warping and splitting under load — and the arithmetic is simple too, since a 1220 × 2440 mm sheet covers 2.98 m², which turns a 180 m² floor into 61 sheets.
Key takeaways
- The name is the specification: a C-grade face, a D-grade back and X (Exterior) glue.
- Cross-laminated pine veneers reduce warping and splitting when the panel carries load.
- Exterior glue resists moisture and rain during construction, but the panel is not built for permanent weather exposure.
- A 1220 × 2440 mm sheet covers 2.98 m², so a 180 m² floor takes 61 sheets before offcuts.
Reading the name before reading the data sheet
The manufacturer defines the product in its own title: C-grade face, D-grade back, and X (Exterior) glue. Each part of that description tells a fitter something useful. The face grade says the visible surface is a working surface rather than a decorative one, so it will be covered by carpet, laminate, vinyl or cladding. The back grade says the second face is rougher still. The X says the adhesive is formulated to tolerate moisture rather than to ignore it.
Panels are made from pine veneers to a construction grade, with the veneers cross-laminated so the grain direction changes from layer to layer. That cross-lamination is the reason the panel resists warping and splitting under load, and it is also why the sheet holds a fixing without the splitting that a single-layer board shows around a nail line. Reading a CDX Pine Plywood description this way is quicker than waiting for a data sheet, since the name already carries the grade of both faces and the moisture class of the glue. None of it makes the panel decorative, and none of it is meant to.
What a subfloor is being asked to do
Under a laminate or vinyl floor the panel has three jobs: provide a flat base, hold the fasteners that stop it moving, and stay stable through the humidity swings of a building under construction. Flatness is the one that shows. A panel that dips at a joint leaves a ridge in a laminate plank months later, and a panel that swells under a spill pushes a vinyl sheet out of level with no obvious cause.
Indoor structural work beyond floors is named on the page as well: subfloors, wall bracing and structural frames. In all three positions the panel is covered or contained, which is precisely the environment where the exterior glue has value — it tolerates the moisture of a job in progress, when a roof is not yet on and a wall is not yet dry.
| Position | What the panel is doing there | Published specification |
|---|---|---|
| Subfloor under carpet, laminate or vinyl | Flat base that holds a fixing without splitting | Cross-laminated pine veneers |
| Exterior wall sheathing | Bracing panel behind the cladding line | X (Exterior) glue |
| Roof decking and underlayment | Carries the shingle or tile build-up | C-grade face with D-grade back |
| Hoarding, fencing and temporary floors | Rough-service panels on an active site | Construction-grade pine veneers |
| Crates, pallets and industrial packaging | Heavy-duty containment and handling | Construction-grade, cross-laminated |
Exterior glue, read correctly

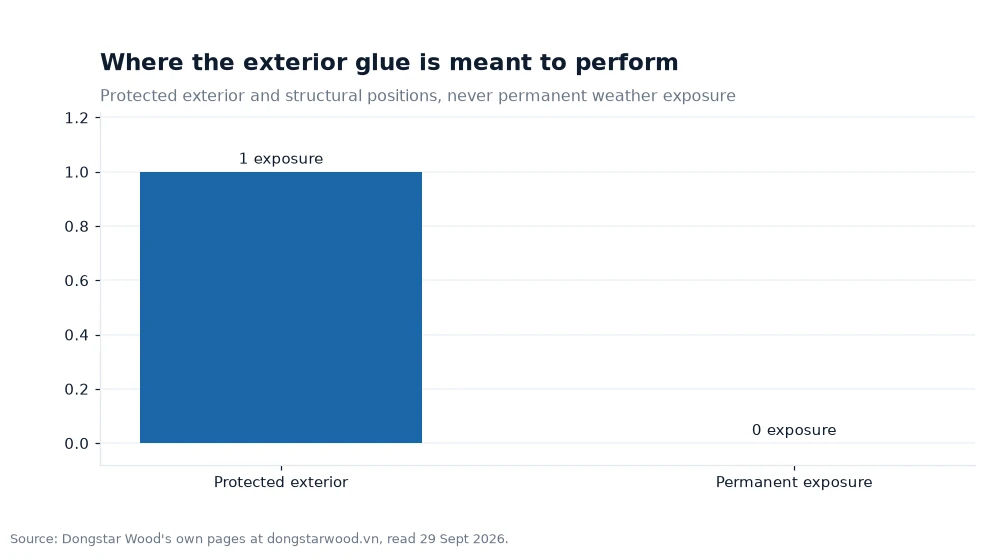

The published moisture position is worth quoting rather than paraphrasing. These panels are not fully weatherproof, and they are best suited to positions where they are not permanently exposed to the weather. What the exterior glue does is resist moisture and rain during the construction phase — the weeks when a deck is open to the sky and a wall has a sheathing panel on it with no cladding over it yet.
That distinction changes where the panel belongs. A subfloor inside a building, a bracing panel behind a facade and a temporary roof deck under a tarp all sit comfortably inside the published description. A permanently exposed fascia or an open-soffit panel does not, and specifying the panel there is the kind of decision that returns as a swollen edge two winters later. Keep the sheathing for the phases it was published for.
Worked example: 180 m² of subfloor in 1220 × 2440 mm sheets
Start with sheet area. A 1220 × 2440 mm panel measures 1.22 × 2.44 = 2.98 m². A floor of 180 m² therefore needs 180 ÷ 2.98 = 60.4 sheets, which rounds up to 61. Those 61 sheets carry 61 × 2.98 = 181.78 m² of panel, leaving 181.78 − 180 = 1.78 m² of surplus — roughly the offcuts a fitter produces around doorways, cupboards and service penetrations.
Scale the same sum to a block of flats. Thirty identical rooms at 6 m² each is 30 × 6 = 180 m², so the same 61 sheets cover the block. Move to a 600 m² roof deck and the count becomes 600 ÷ 2.98 = 201.3, call it 202 sheets. Panel count is driven by sheet area rather than by thickness, so fix the format first and the grade second.
Roof decks, sheathing and the jobs that are not interiors
Roof decking with shingle and tile underlayment, exterior wall sheathing, construction barriers and temporary structures, and crating for heavy-duty industrial packaging are all named applications. They share one property: the panel is in place to do a structural or protective job and is either covered afterwards or removed at the end of a phase. A hoarding comes down; a roof deck gets covered; a crate goes on a ship.
That is why the panel is chosen by position rather than by job title. A site foreman ordering temporary fencing and a housebuilder ordering subfloor sheathing are buying the same construction-grade pine panel, and both are buying it for the same reason — a cross-laminated build that holds its shape while it is in service, then gets out of the way.
Frequently asked questions
What do the letters in CDX pine plywood stand for?
The manufacturer's own definition is a C-grade face, a D-grade back and X for Exterior glue. The face and back grades describe a working surface rather than a decorative one, and the exterior glue describes moisture tolerance during construction rather than a permanent weather barrier.
Can this panel be used in a bathroom or a wet room?
It is published as not fully weatherproof and best suited to positions where panels are not permanently exposed, so a wet room is the wrong home for it. Indoor use is common and normal — subfloors, wall bracing and structural frames — because those positions stay dry once the building is closed and finished.
Is one panel suitable for both a floor and a roof deck?
The published applications cover both: subfloor and underlayment beneath carpet, laminate and vinyl, roof decking for shingle and tile, exterior wall sheathing, temporary structures, and heavy-duty crates and pallets. The difference between those positions is not the panel family but how long it is left exposed and what goes over it.
Two pages that help with the next decision
If the same build needs covered interior panels above the sheathing, the commercial grades set out the thickness bands for cabinet backs, shelving and worktops so the sheathing decision and the fit-out decision can be compared side by side. Whether the mill can hold one specification across a whole site programme is a separate question, and the factory's own background page answers it with capacity, storage and certification information in one place.
